Tubular UF membrane equipment are specialized high-efficiency separation and purification units specifically engineered for applications in the fruit and vegetable juice industry. These systems are designed to enhance the purification and concentration stages of juice production, accommodating a wide variety of fruit and vegetable juices, including orange and apple juice. Key advantages include: 1) excellent fouling resistance, enabled by wide flow channels that are well-suited to high-viscosity feed streams and exhibit minimal clogging risk; 2) high separation accuracy, ensuring consistent product quality; 3) operational and maintenance simplicity, supported by modular configurations that facilitate cleaning and component replacement, thereby enabling uninterrupted continuous production.
Apllication Fields
Purification and Concentration of Fruit and Vegetable Juices.

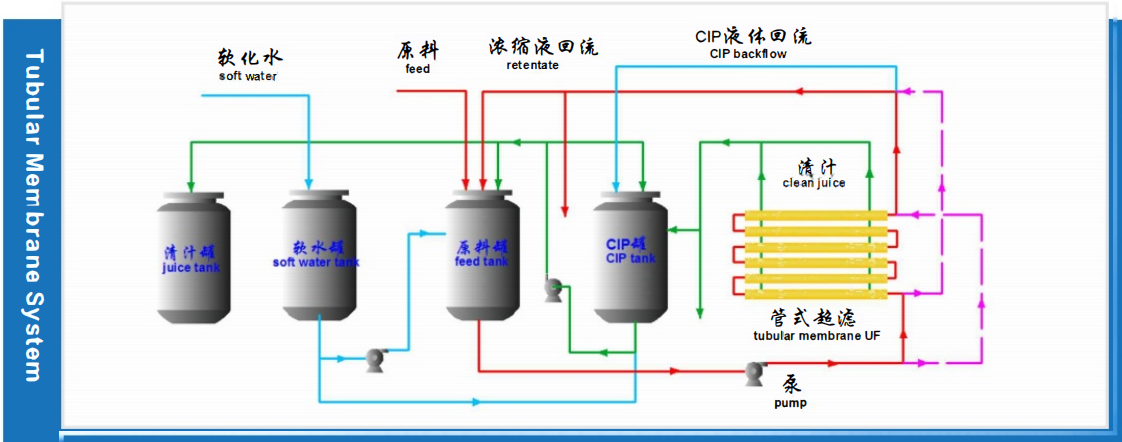

Process Flow:

Advantages:
(1)Standard Design (PID);
(2)Standard List Components (Standard Manufacturing, High-Quality Products, Supply Chain Assurance);
(3)Standard Control Program;
(4)On-Site Installation and Commissioning Guidance (Provision of Operation Manual, Installation Video);
(5)Modular and Integrated Unit, Customizable Production Offered.
Equipment Specifications
|
Tubular UF Membrane Equipment In Juice Industry |
||||
|
Model |
Tubular membrane |
|||
|
Model |
Module Diameter |
Membrane Area |
Housing Material |
|
|
Tri-GZ-Ⅰ |
MO33s66.03I12.5TV-Ⅰ |
3″ |
2.2m2 |
Ss |
|
Tri-GZ-Ⅱ |
MO33P66.03I12.5TV-Ⅰ |
3″ |
2.2m2 |
PSF |
|
Tri-GZ-Ⅲ |
MO33.6s66.03I12.5TV-Ⅰ |
3″ |
2.6m2 |
ss |
|
Tri-GZ-Ⅳ |
MO33.6P66.03I12.5TV-Ⅰ |
3″ |
2.6m2 |
PSF |
|
Tri-GZ-Ⅴ |
MO43.6s66.03I12.5TV-Ⅰ |
4″ |
5.2m2 |
ss |
|
Tri-GZ-Ⅵ |
MO43.6P66.03I12.5TV-Ⅰ |
4″ |
5.2m2 |
PSF |
|
Tri-GZ-Ⅶ |
MO33s66.03I12.5TV-Ⅱ |
3″ |
2.2m2 |
ss |
|
Tri-GZ-Ⅷ |
MO33.6s66.03I12.5TV-Ⅱ |
3″ |
2.6m2 |
ss |
|
Tri-GZ-Ⅸ |
MO43.6s66.03I12.5TV-Ⅱ |
4″ |
5.2m2 |
ss |
3.7 List Package
|
Item |
Name |
Item |
Name |
|
1 |
Tubular membrane inJuice Industry
|
8 |
meter |
|
2 |
Rack |
9 |
Design Drawings |
|
3 |
Pump |
10 |
Installation Guide |
|
4 |
PLC |
11 |
Operation & Maintenance Manual |
|
5 |
Pipe |
12 |
Certificate of Conformance |
|
6 |
Flowmeter |
13 |
Warranty Certificate |
|
7 |
Valve |
|
