Short Description:

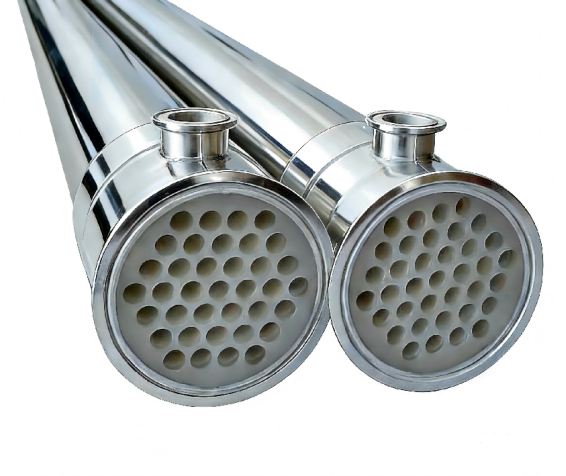

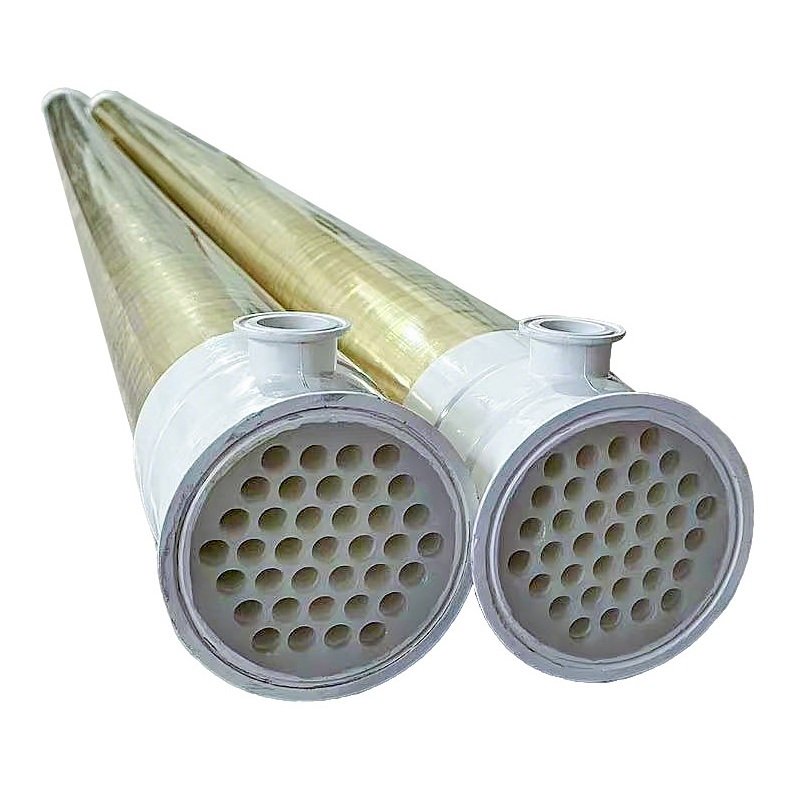

Tubular UF membranes are widely employed for the clarification and filtration of fruit and vegetable juices. TRI-HIGH tubular UF membrane is manufactured using premium materials imported from Germany, with the membrane tubes fabricated through a specialized welding process that ensures superior mechanical strength and extended service life, fully compliant with international food safety standards. Membrane housing is manufactured utilizing medical-grade stainless steel or polysulfone materials. The transparent polysulfone housing facilitates direct visual monitoring of membrane operational status.
Application：
Clarification and Concentration of Fruit and Vegetable Juices
Product Types and Technical Parameters:
Table1. Tubular UF Membrane Performance Parameter
|
Product Description |
Material：PVDF |
||||||||
|
Type:UF； MWCO：100KDa |
|||||||||
|
Module construction:Tubular membrane； |
|||||||||
|
Specification |
Model |
Channels |
I.D |
Module Diameter |
Module Length |
Housing Material |
Membrane Area |
||
|
ft2 |
m2 |
||||||||
|
Product |
MO33s66.03I12.5TV-Ⅰ |
19 |
12.5 |
3″ |
10´ |
ss |
24 |
2.2 |
|
|
MO33P66.03I12.5TV-Ⅰ |
19 |
12.5 |
3″ |
10´ |
PSF |
24 |
2.2 |
||
|
MO33.6s66.03I12.5TV-Ⅰ |
19 |
12.5 |
3″ |
12´ |
ss |
28 |
2.6 |
||
|
MO33.6P66.03I12.5TV-Ⅰ |
19 |
12.5 |
3″ |
12´ |
PSF |
28 |
2.6 |
||
|
MO43.6s66.03I12.5TV-Ⅰ |
37 |
12.5 |
4″ |
12´ |
ss |
55.9 |
5.2 |
||
|
MO43.66P66.03I12.5TV-Ⅰ |
37 |
12.5 |
4″ |
12´ |
PSF |
55.9 |
5.2 |
||
|
Operation Parameter |
Max operation pressure |
6.2bar@49℃ |
|||||||
|
Min concentrate outlet |
0.7bar |
||||||||
|
Max pressure on permeate side |
0.2bar |
||||||||
|
Pressure decay inside each membrane |
0.35bar@49℃ |
||||||||
|
Max operation temperature@pH8 |
Continuous49℃short term54℃ |
||||||||
|
PHscope@49℃ |
Continuous2-10short term1.5-10.5 |
||||||||
|
Max allowed total chlorine(cleaning) |
200ppm@pH10-10.5,49℃ |
||||||||
