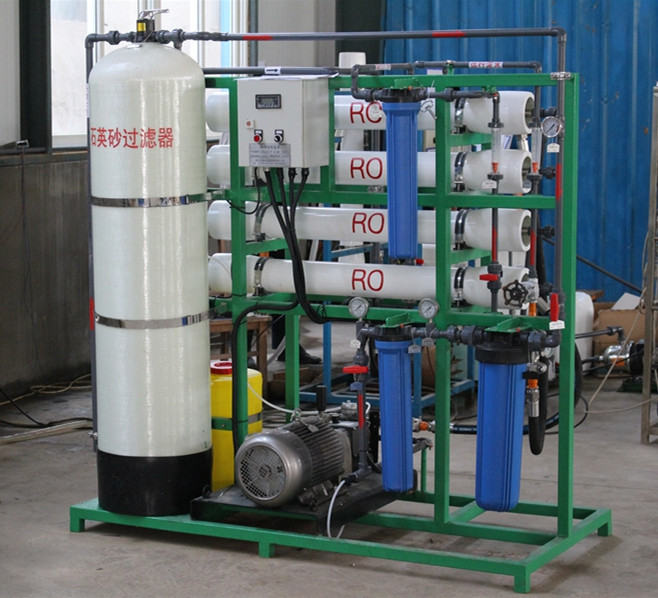

Small size seawater desalination machine to make fresh drinking water for home use.
Apllication Fields
(1) Marine engineering
(2) Home
(3)Vessel, boat & ship
(4)Municipal city drinking water plant
Process Flow：
Seawater → Lifting pump → Flocculant sediment tank → Quartz sand filter → Activated carbon filter → Security filter → Precision filter → High pressure pump → RO system → Production water tank
Advantages:
1.High purification accuracy, safer water quality
2.Simple installation and maintenance, suitable for home use
3.Low cost of use, high cost performance.
Equipment Specifications
|
Model
|
Production water (t/d)
|
Working Pressure (MPa)
|
Inlet water temperature (°C)
|
Recovery rate (%)
|
Dimension (L×W×H (mm))
|
|---|---|---|---|---|---|
|
JTSWRO-10
|
10
|
4-6
|
5-45
|
30
|
1900×550×1900
|
|
JTSWRO-25
|
25
|
4-6
|
5-45
|
40
|
2000×750×1900
|
|
JTSWRO-50
|
50
|
4-6
|
5-45
|
40
|
3250×900×2100
|
|
JTSWRO-100
|
100
|
4-6
|
5-45
|
40
|
5000×1500×2200
|
|
JTSWRO-120
|
120
|
4-6
|
5-45
|
40
|
6000×1650×2200
|
|
JTSWRO-250
|
250
|
4-6
|
5-45
|
40
|
9500×1650×2700
|
|
JTSWRO-300
|
300
|
4-6
|
5-45
|
40
|
10000×1700×2700
|
|
JTSWRO-500
|
500
|
4-6
|
5-45
|
40
|
14000×1800×3000
|
|
JTSWRO-600
|
600
|
4-6
|
5-45
|
40
|
14000×2000×3500
|
|
JTSWRO-1000
|
1000
|
4-6
|
5-45
|
40
|
17000×2500×3500
|
List Package
(1) RO membrane： DOW, Hydraunautics, GE
(2) Vessel：ROPV or First Line, FRP material
(3) HP pump：Danfoss super duplex steel
(4) Energy recovery unit：Danfoss super duplex steel or ERI
(5) Frame：carbon steel with epoxy primer paint, middle layer paint, and polyurethane surface finishing paint 250μm
(6) Pipe：Duplex steel pipe or stainless steel pipe and high pressure rubber pipe for high pressure side, UPVC pipe for low pressure side.
(7) Electrical： PLC of Siemens or ABB , electrical elements from Schneider.
