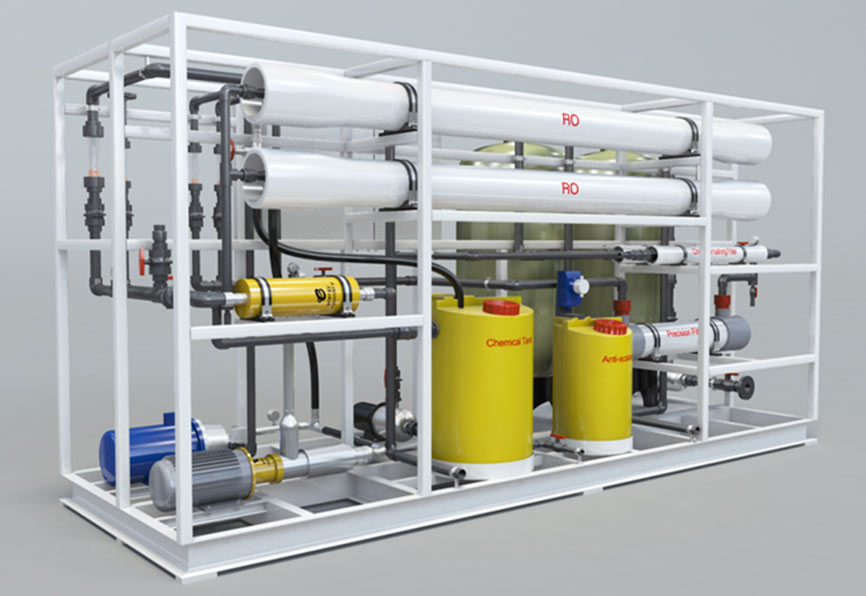

Desalination is the process of removing salt and other impurities from seawater to make it suitable for drinking, irrigation or industrial use. This is especially important in areas where freshwater resources are limited or unavailable. YANTAI JIETONG specialized in design, manufacture of various capacity of seawater desalination machines for more than 20years. Professional technical engineers can make design as per customer specific requirement and site actual condition.Middle size seawater desalination machine manufactured for Island for making fresh drinking water from sea.
Apllication Fields
(1) Marine engineering
(2) Power plant
(3)Oil field, petrochemical
(4) Processing enterprises
(5)Public energy units
(6) Industry
(7)Municipal city drinking water plant
Process Flow：
Seawater → Lifting pump → Raw water booster pump → Quartz sand filter → Activated carbon filter → Security filter → Precision filter → High pressure pump → RO system → Production water tank
Advantages:
1.Highly mobile and widely adaptable to various scenarios
2.Quick start-up and fast emergency response
3.Quick start-up and fast emergency response
4.Intelligent operation and maintenance, easy to operate
PID
Technical Data:
Capacity: 3m3/hr
Container: Frame mounted
Power consumption: 13.5kw.h
Recovery rate: 30%;
Raw water: TDS <38000ppm
Production water<800ppm
Operation method: Manual/Automatic
Equipment Specifications
|
Model
|
Production water (t/d)
|
Working Pressure (MPa)
|
Inlet water temperature (°C)
|
Recovery rate (%)
|
Dimension (L×W×H (mm))
|
|---|---|---|---|---|---|
|
JTSWRO-10
|
10
|
4-6
|
5-45
|
30
|
1900×550×1900
|
|
JTSWRO-25
|
25
|
4-6
|
5-45
|
40
|
2000×750×1900
|
|
JTSWRO-50
|
50
|
4-6
|
5-45
|
40
|
3250×900×2100
|
|
JTSWRO-100
|
100
|
4-6
|
5-45
|
40
|
5000×1500×2200
|
|
JTSWRO-120
|
120
|
4-6
|
5-45
|
40
|
6000×1650×2200
|
|
JTSWRO-250
|
250
|
4-6
|
5-45
|
40
|
9500×1650×2700
|
|
JTSWRO-300
|
300
|
4-6
|
5-45
|
40
|
10000×1700×2700
|
|
JTSWRO-500
|
500
|
4-6
|
5-45
|
40
|
14000×1800×3000
|
|
JTSWRO-600
|
600
|
4-6
|
5-45
|
40
|
14000×2000×3500
|
|
JTSWRO-1000
|
1000
|
4-6
|
5-45
|
40
|
17000×2500×3500
|
List Package
(1) RO membrane： DOW, Hydraunautics, GE
(2) Vessel：ROPV or First Line, FRP material
(3) HP pump：Danfoss super duplex steel
(4) Energy recovery unit：Danfoss super duplex steel or ERI
(5) Frame：carbon steel with epoxy primer paint, middle layer paint, and polyurethane surface finishing paint 250μm
(6) Pipe：Duplex steel pipe or stainless steel pipe and high pressure rubber pipe for high pressure side, UPVC pipe for low pressure side.
(7) Electrical： PLC of Siemens or ABB , electrical elements from Schneider.
