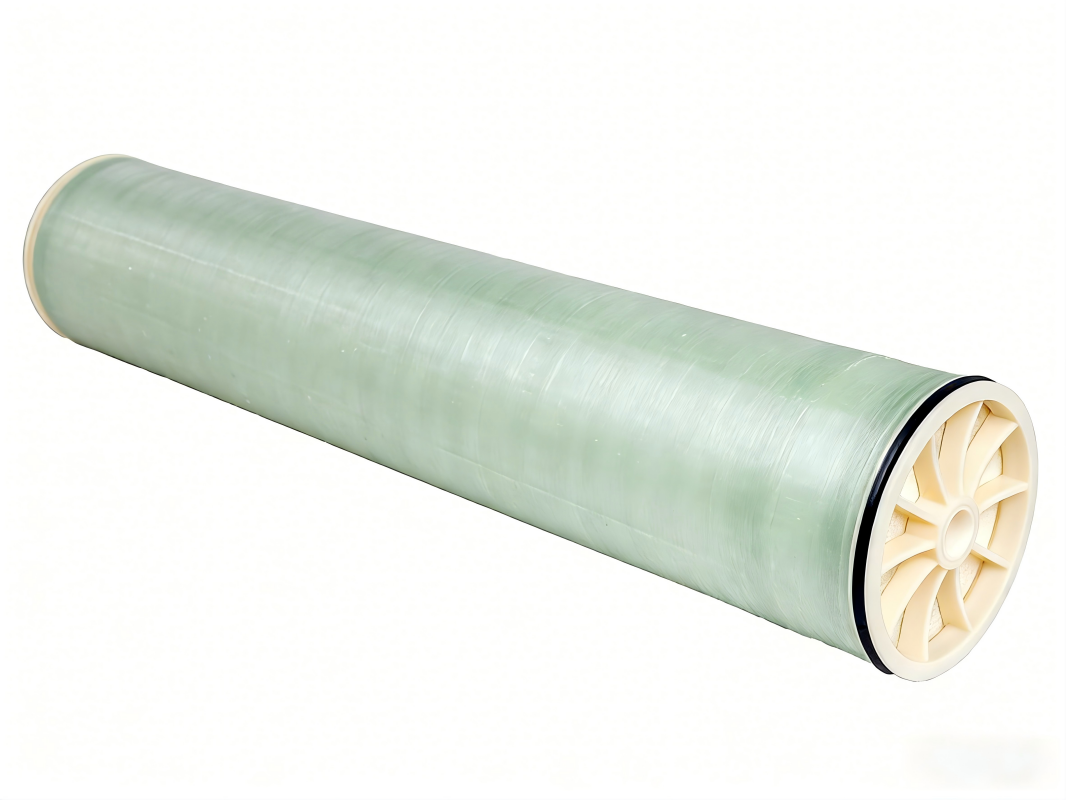

SW series of sea water aromatic polyamide RO element are used in seawater desalination. This series of elements have the characteristics of low operating pressure, low equipment investment, good desalination performance and stability. Among them, the SW8040-400 have the highest desalination rate of 99.85%, which ensure that drinking water can be produced from seawater through one pass RO system.
Application：
SW series membrane elements are generally suitable for the treatment of seawater and brackish water with high concentration. It can be used for seawater desalination, desalination of brackish water with high concentration, boiler replenishment water in power plants, wastewater reuse, concentration and recovery of high value-added substances such as food and pharmaceuticals, etc.
Technical Parameters：
|
Model |
Effective Membrane Area ft² (m²) |
Permeate flow GPD (m³/d) |
Stable Rejection Rate (%) |
Feed Spacer Thickness ( mil) |
|
SW8040XHR-440-VG2 |
440(40.9) |
6600(25.0) |
99.9 |
28 |
|
SW8040XHR-400-VG2 |
400(37.2) |
6000(22.7) |
99.9 |
28 |
|
SW4040LE |
95（8.8） |
1900（7.2） |
99.7 |
28 |
|
SW8040XHR-400 |
400 (37.2) |
6000（22.7） |
99.85 |
28 |
|
SW8040XHR-440 |
440 (40.9) |
6600（25.0） |
99.85 |
28 |
|
SW8040FR-400 |
400 (37.2) |
8200 (31.0) |
99.8 |
34 |
|
SW8040HR-400 |
400 (37.2) |
7500（28.4） |
99.8 |
28 |
|
SW8040HR-440 |
440 (40.9) |
8250（31.2） |
99.8 |
28 |
|
SW8040LE-400 |
400 (37.2) |
9000（34.0） |
99.8 |
28 |
|
SW8040LE-440 |
440 (40.9) |
9500（35.9） |
99.8 |
28 |
|
SW8040XLE-400 |
400 (37.2) |
11000（41.6） |
99.7 |
28 |
|
SW8040XLE-440 |
440 (40.9) |
12100（45.8） |
99.7 |
28 |
|
SW4040HR |
95（8.8） |
1600 (6.1) |
99.8 |
28 |
|
SW11-4021 |
33(3.1) |
750（2.8） |
99.5 |
28 |
|
SW11-2521 |
12 (1.1) |
270 (1.0) |
99.5 |
28 |
|
SW11-2540 |
28(2.6) |
600（2.3） |
99.5 |
28 |
