RO equipment is specially designed for the water purification and sea water desalination application, it owns layout reasonable and compact, small space occupied, stable & high safety perfor mance and beautiful etc advantages.

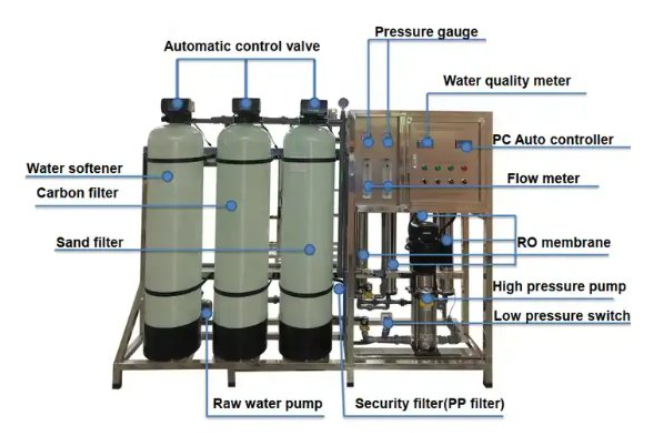

RO equipment consists of high filtration precision & long life time security filter unit and the international famous brand RO elements & Pressure vessel & Pumps,Valves etc. It owned the high-efficiency performance for desalination and better for production of pure water etc.
Apllication Fields
RO plant is used to produce pure water and high purity water in different filed such as electronic industry, pharmaceutical industry, power plant, food&beverage, sea water desalination,etc.

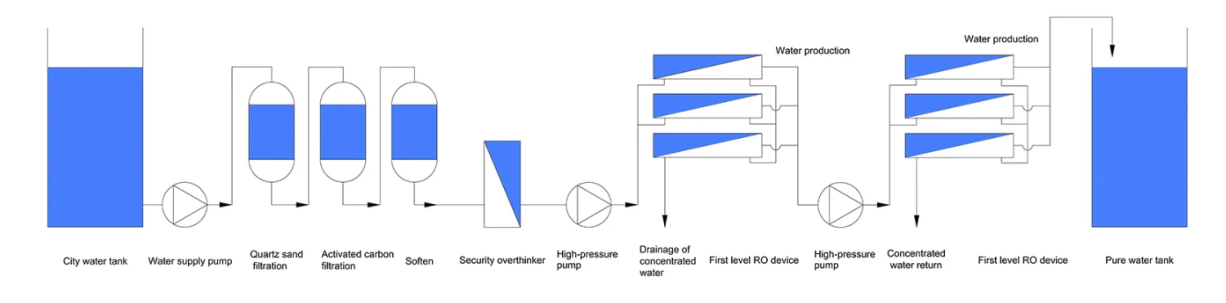

Process Flow：
Advantages:
(1)High water reuse rate
(2)High permeate water quality
(3)Variety of flux for customer choose
(4) Compact design, safe and reliable
(5)Full automatic control performance
(6) Stabe performance, low operating cost

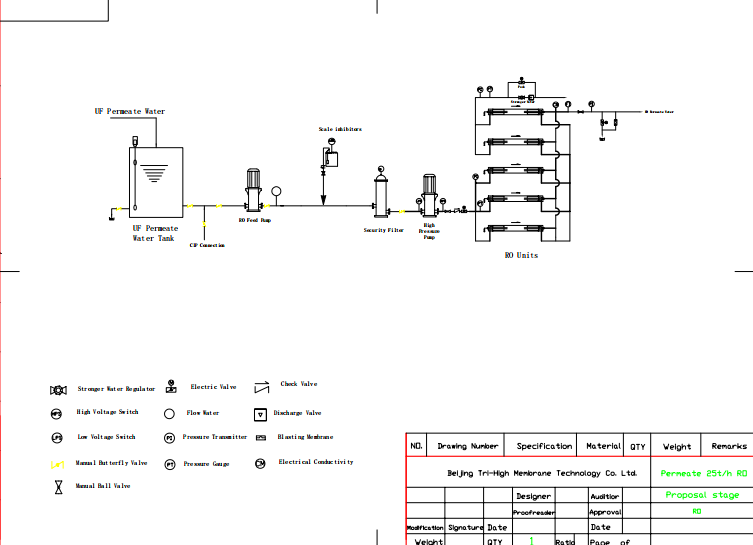

PID
Equipment Specifications

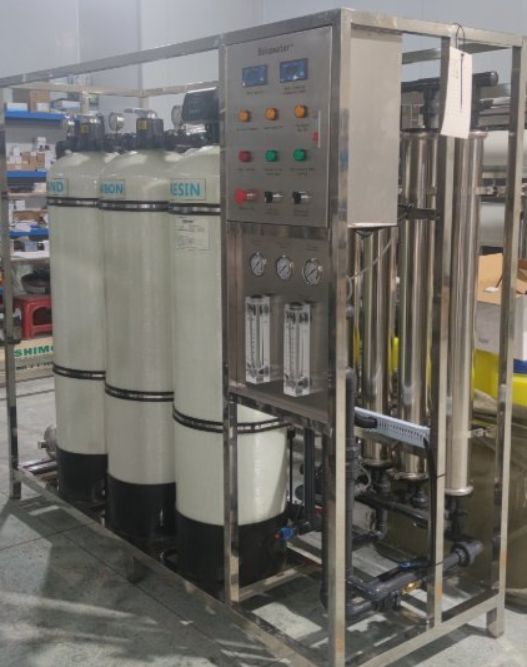

(1)1000Lph RO water treamnet equipment RO membrane filtration system commercial/industrial water purification
The 1000LPH RO system uses high-performance RO membrane technology with a desalination rate of up to99.7%,producing 1000liters of purified water per hour,suitable for various industrial and commercial application.

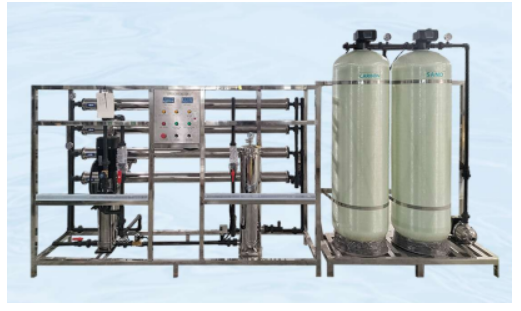

(2)Compact and efficient 2000LPH standard RO system for reliable water purification
The standard 2000LpH(liters per hour)RO(Reverse Osmosis) sysrem is designed for bottle filling lines,providing efficient and relaible water purification .It effectively removes impurities such as salts,bacteria,and other contaminants ,ensuring high.

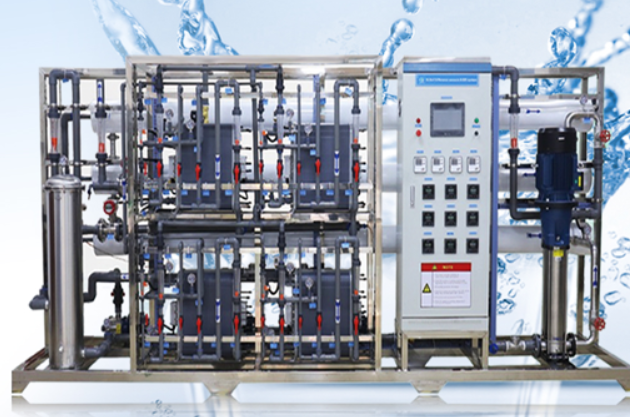

(3)5000LPH Two Stage RO system
The 5000LPH two-stageRO water treatment system,designed for the pharmaceutical and skin care industries, efficiently removes impurities from water and ensures high purity water to meet the requirement of the industry.
(4)8000LpH large scale industrial RO plant water purification chemicals dosing system water filter machine.
RO 8000LPH purified water semi-augtomatiion/automatic RO equipment/machine/plant/system.
List Package
(1)Water tank:
storag of raw water,to solve the problem of insuficient raw water pressure and the back booster pump due t the impact of insuficient wate,reduce the falre rate.
(2)Booster pump:
Equipped with a stainless steel pump,to provide sufficient pressure for subsequent filtration.
(3)Quartz sand filter:
Equipped with a stainless steel pump,to provide sufficient pressure for subsequent filtration.
(4)Carbon filter:
Mainly remove organic substances,residual chlorine and odor in tap water.
(5)Water softener filter:Mainly remove the calcium and magnesium in raw water,reduce the hardness of water.
(6)Security filter:
Further filtration of 5um,protection of reverse osmosis membrane.
(7)High-pressure pump:
Provide enough pressure for the reverse osmosis system.
(8)Reverse osmosis device:The core part of pure water equipment is the production of high-purity water.
(9)Product water tank:
Storage of pure water can change the size of the water tank,after the above process.The water result is pure enough fordiferent applications.
