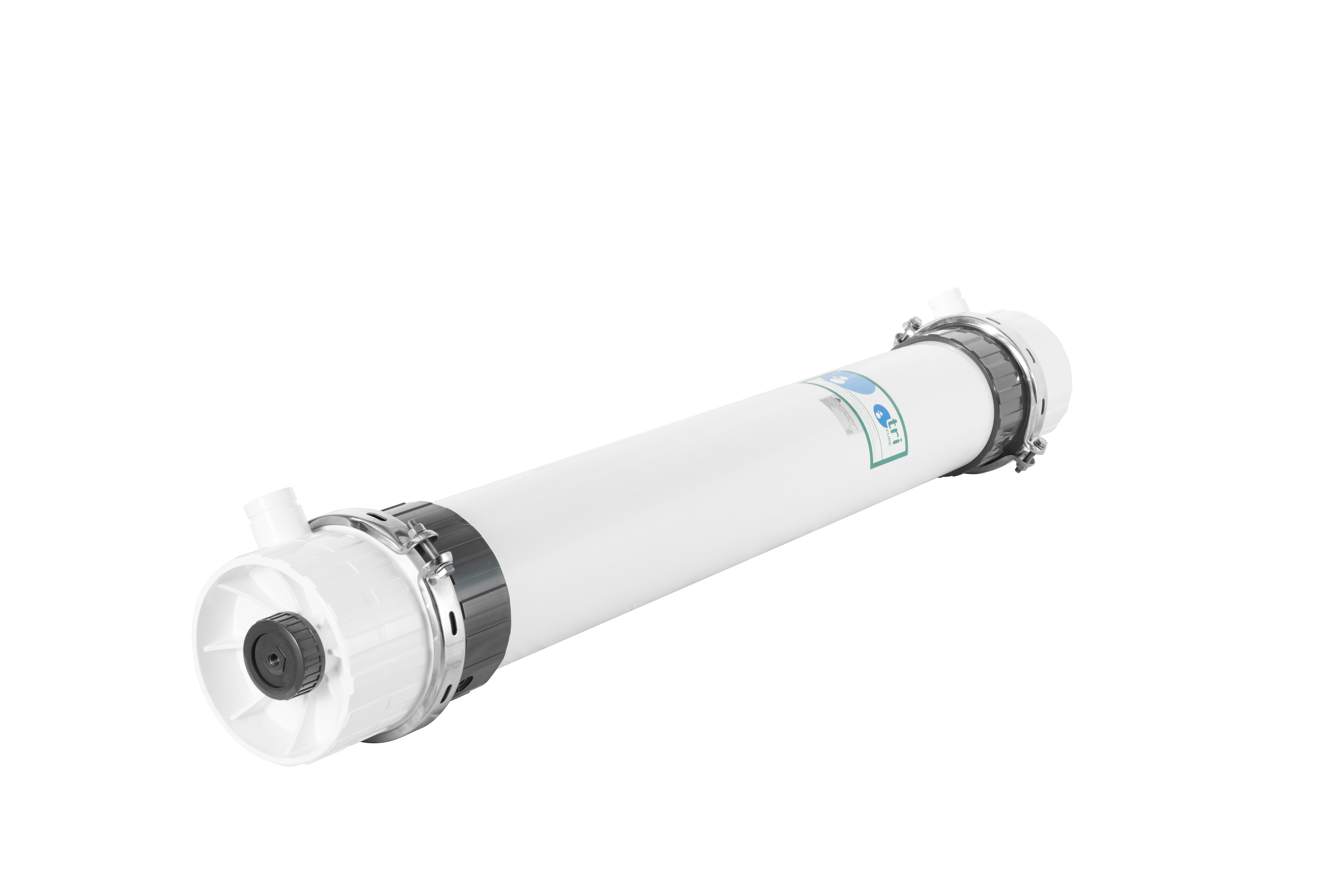

Tri-High THF series outside-in hollow fiber UF membrane made of PVDF material, the membrane has excellent performance in anti-fouling and chemical resistance, the recovery rate is higher and footprint is smaller, can be applied in various of water treatment, such as ground water, surface water, seawater, wastewater and pretreatment of RO/NF.
Application：
Industrial wastewater
Wastewater reuse
Ground water and mine water
Surface water
Boiler make-up water
Pretreatment of seawater desalination
Membrane Parameters：

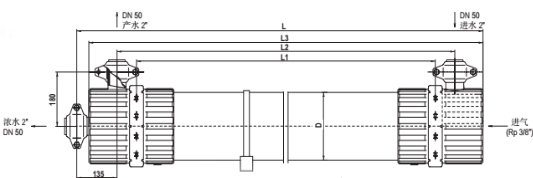

Membrane parameters
|
Module Model |
L (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
D (mm) |
Membrane area(m2) |
|
THF-1880 |
1860 |
1500 |
1600 |
1820 |
225 |
50 |
|
THF-2880 |
2360 |
2000 |
2130 |
2320 |
225 |
77 |
Technical Parameters：
Technical Parameters
|
Membrane Material |
PVDF |
|
Membrane Pore Size |
0.7mm |
|
Molecular Weight Cut-off, Daltons |
100000 |
|
Operating Temperature |
1-40℃ |
|
Flux |
40-120L/m2.h |
|
Operating Pressure |
≤0.6Mpa |
|
pH Range |
2-12 |
|
Maximum Transmembrane Pressure Difference |
2.1bar |
|
Maximum Backwash Pressure |
2.5bar |
|
Influent Turbidity |
＜300NTU |
|
Maximum Tolerable Residual Chlorine Concentration |
2000 |
|
Membrane Housing Material |
UPVC |
