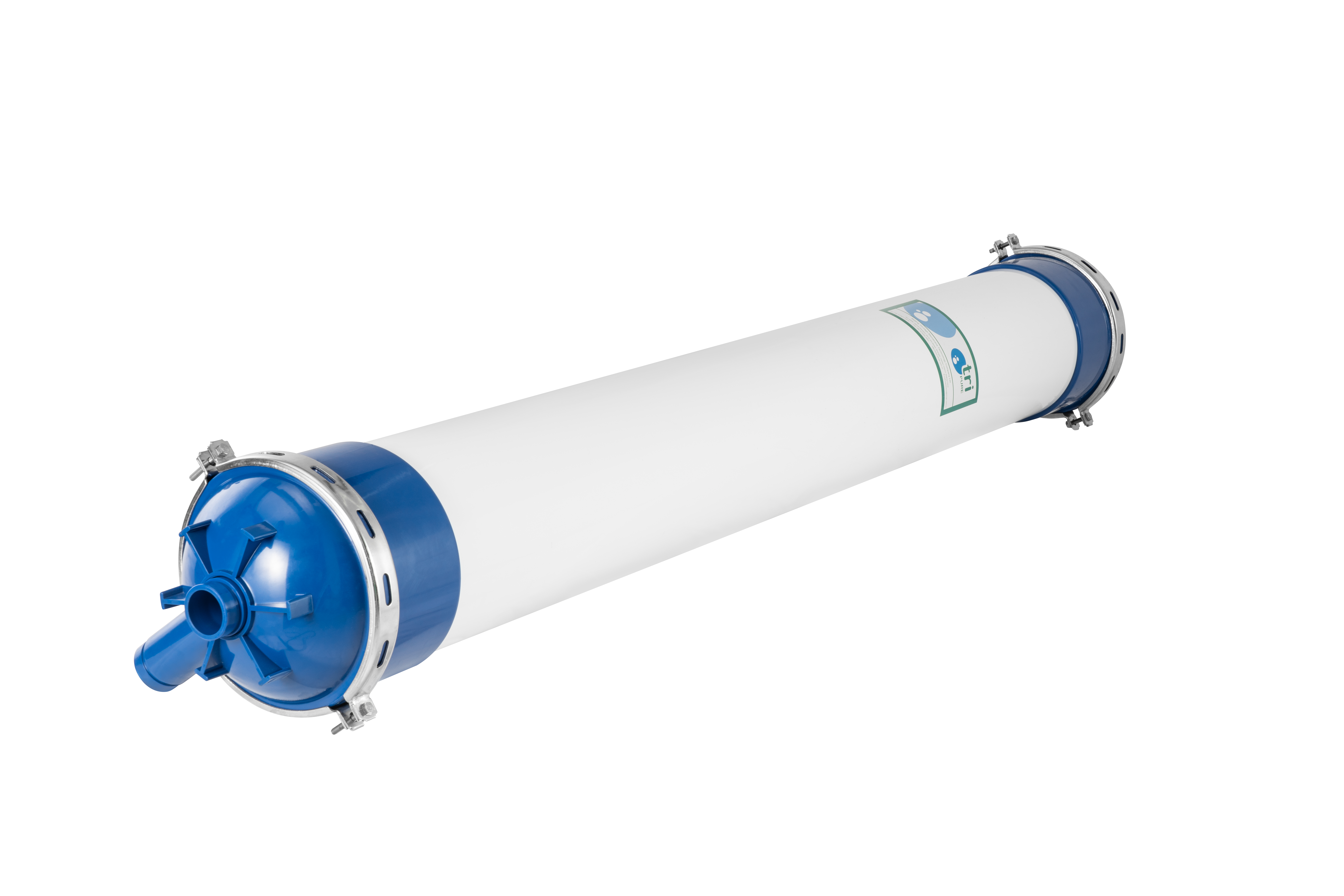

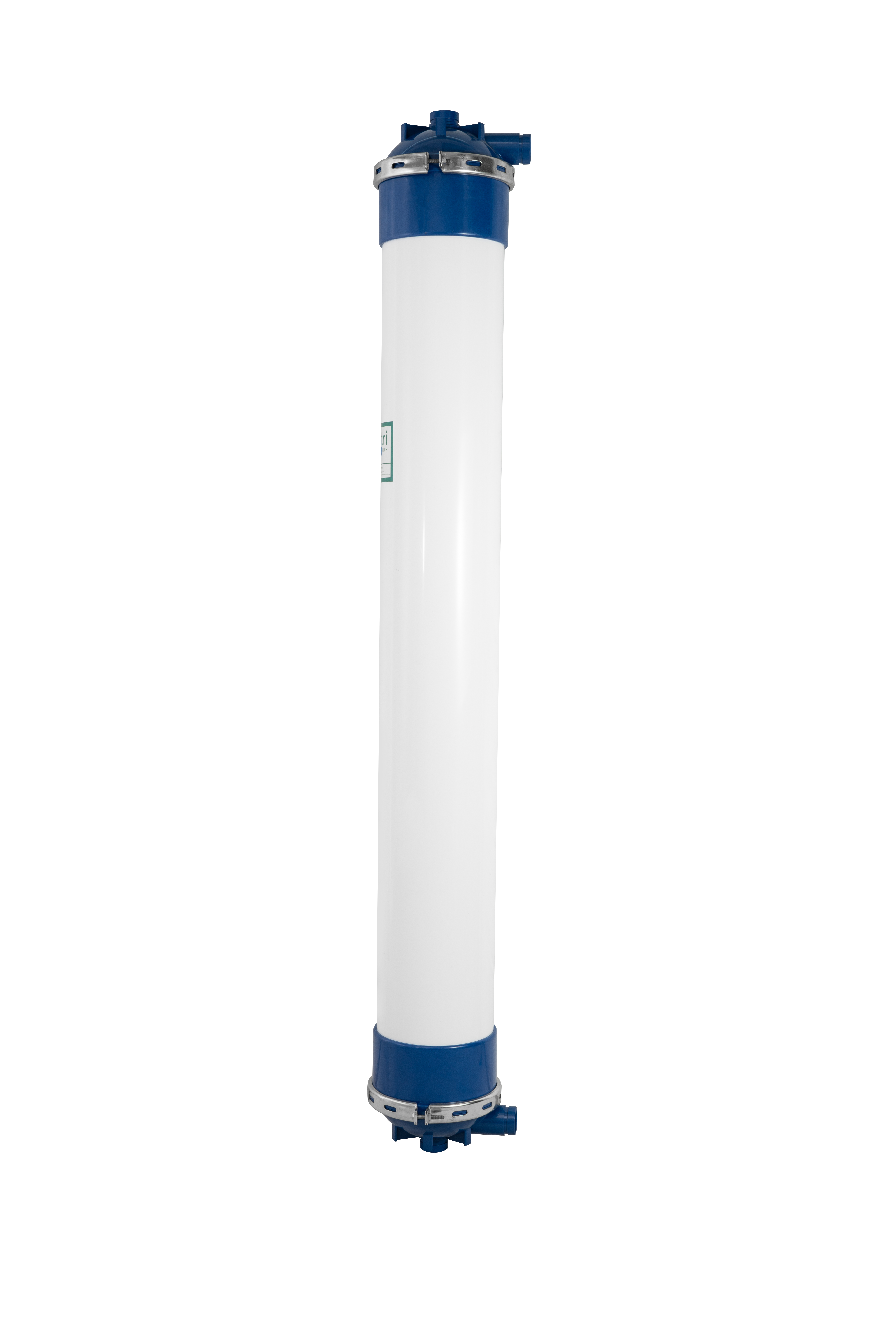

Tri-High Tripure series inside-out hollow fiber UF membrane is made of PS/PES material, manufactured by the advanced polymer polymerization technology, the membrane has high strength, high flux and stable performance, anti-fouling and oxidant resistant, can remove the particles, colloid, microorganism and virus in the water effectively and also can remove some dissolved macromolecule organic matters in the water.
Application：
Ground water
Reclaimed water reuse
Pretreatment of drinking water
Industrial waste water
Boiler make-up water
Pretreatment of sea water desalination
Membrane Parameters：

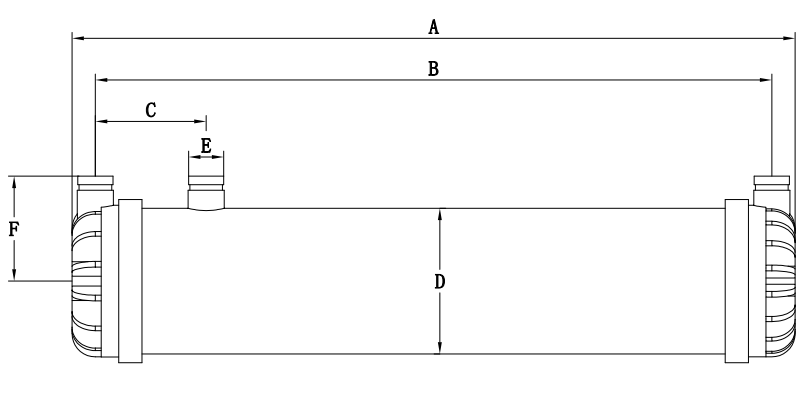

Membrane parameters
|
Module Model |
8P_0.9 |
8P_0.9XL |
10P_0.9XL |
10P_0.9XL70 |
|
Length（A） mm |
1328 |
1780 |
1806 |
2106 |
|
Inlet center distance (B) mm |
1167 |
1645 |
1663 |
1963 |
|
Housing（C） mm |
849 |
1327 |
1274 |
1574 |
|
Inlet and outlet center distance (F) mm |
152 |
152 |
176 |
176 |
|
Housing diameter（G） mm |
200 |
200 |
250 |
250 |
|
Inlet Clamp dimension (D) inch (mm) |
2" (Φ60) |
|||
|
Outlet Clamp dimension (D) inch (mm) |
2" (Φ60) |
|||
|
Membrane area |
30 m2 |
40 m2 |
60 m2 |
70 m2 |
Technical Parameters：
Technical Parameters
|
Membrane Material |
PS |
|
Membrane Pore Size |
0.8mm |
|
Molecular Weight Cut-off, Daltons |
100000 |
|
Operating Temperature |
1-40℃ |
|
Flux |
40-120L/m2.h |
|
Operating Pressure |
≤0.4Mpa |
|
pH Range |
2-12 |
|
Maximum Transmembrane Pressure Difference |
2.5bar |
|
Maximum Backwash Pressure |
2.5bar |
|
Influent Turbidity |
＜10NTU |
|
Maximum Tolerable Residual Chlorine Concentration |
500 |
|
Membrane Housing Material |
UPVC |
