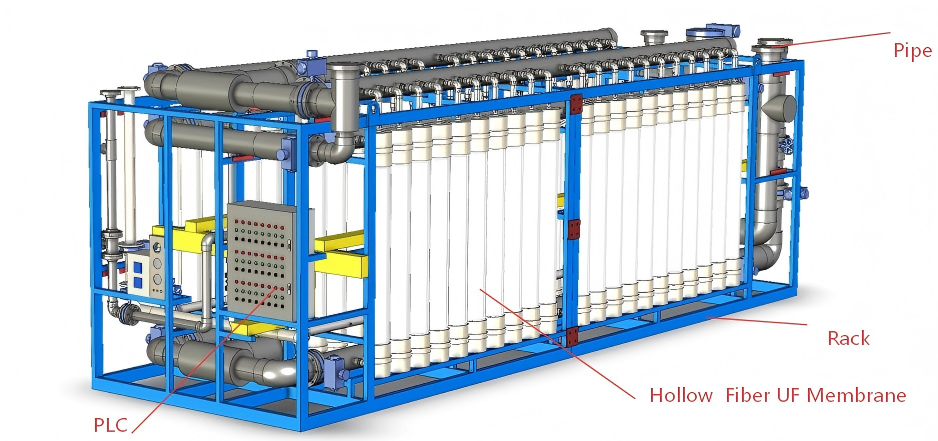

Hollow Fiber UF Membrane Equipment

Apllication Fields

(1)Mineral water: In the production of mineral water, ultrafiltration technology is applied. In engineering design, the pore size membrane type of the membrane are selected according to the water quality analysis report of the mineral water source, and the ultrafiltration design is designed. 　　

(2)Food: the production of dairy products, fruit juices, wine, condiments and other foods, ultrafiltration technology is gradually adopted, such as the separation of protein and low molecular weight lact from milk or whey and water, clarification and sterilization of fruit juices, removal of colored proteins, polysaccharides and other colloidal impurities in wine, removal bacteria in soy sauce and vinegar, etc., which shows economic, reliable, quality assurance and other advantages compared with traditional methods. 　　

(3)Pharmaceuticals: In production of pharmaceuticals and biochemical products, it is often necessary to separate and purify heat-sensitive substances. Ultrafiltration technology shows its outstanding advantages. It is quite suitable use ultrafiltration to separate and concentrate bioactive substances (such as enzymes, viruses, nucleic acids, special proteins, etc.). Drugs extracted from animals and plants ( as alkaloids, hormones, etc.) often contain macromolecular or solid substances in their extracts. In many cases, ultrafiltration can be used to separate them, which product quality. 　　

(4)Pure water, ultra-pure water: Primary purification of industrial water, preparation of pure water and ultra-pure water RO pre-t, pure water and ultra-pure water terminal treatment. 　　

Environmental protection: Deep treatment of industrial wastewater, urban reclaimed water reuse system, recovery of electrooretic paint and oil. 　　

(5)Fermentation: Separation and refining of biochemical fermentation liquid, concentration and refining of enzyme, clarification and filtration of and xylitol.

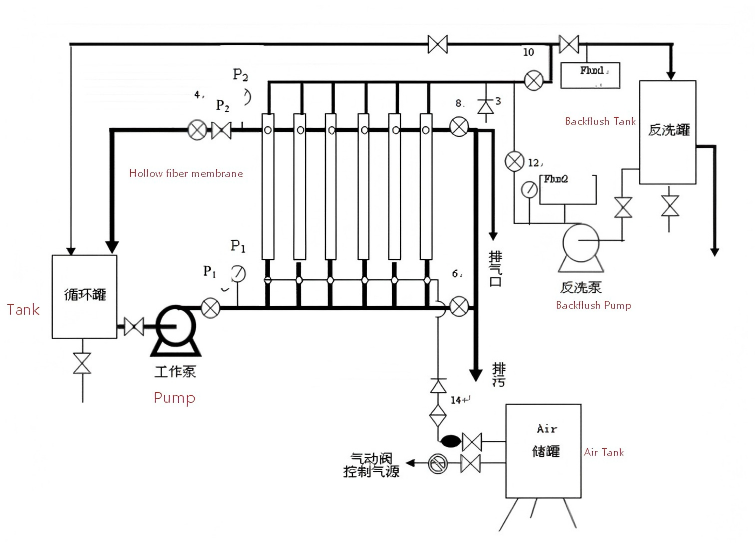

Process Flow：

Advantages:
(1)The system has a high recovery rate and the resulting product quality is excellent, which can achieve the separation, purification and high-fold concentration materials.

(2)There is no phase change in the treatment process, and there is no adverse effect on any component of the material, and the separation, purification and are always at room temperature, which is especially suitable for the treatment of heat-sensitive substances, completely avoiding the disadvantages of high temperature destroying biological active substances, and effectively retaining biological substances and nutrients in the original material system.

(3)The system has low energy consumption, short production cycle, low equipment operation cost compared with traditional process equipment, and can reduce production costs and improve the economic benefits of enterprises.

(4)The system process design is advanced, the degree of integration is high, the structure is compact, the footprint small, the operation and maintenance are simple, and the labor intensity of workers is low.

(5)The control system can be personalized according to the specific use requirements of the user, with advanced control software, on-site online centralized monitoring of important process operation parameters, to avoid manual errors, and to ensure the long-term stable operation of the system from multiple.

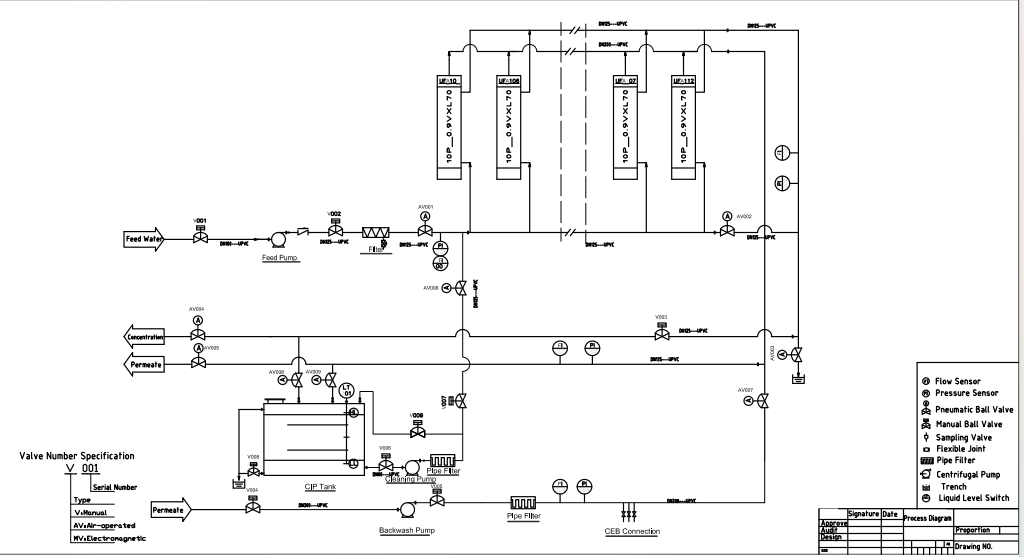

PID



Equipment Specifications

TRI-High can provide small unit from 0.5m3/d till 100m3/d and larger unit can be customized.

List Package
