The submerged curtain membrane equipment is a high-efficiency solid-liquid separation system specifically engineered for applications in municipal, industrial, and domestic wastewater treatment. It is capable of processing a wide range of effluents, including municipal sewage, industrial wastewater from sectors such as food processing and textile dyeing, residential greywater, and decentralized rural sewage. The system offers several key advantages: 1) high separation efficiency due to uniformly distributed membrane fibers that ensure stable filtration performance; 2) a compact structural design in which membrane modules are directly submerged in the treatment medium, significantly minimizing space requirements; 3) simplified operation and maintenance enabled by a modular curtain-type configuration, allowing for easy cleaning and component replacement, while maintaining low energy consumption and controllable operating costs—making the system highly adaptable to diverse wastewater treatment environments.
Apllication Fields
(1)Landfill Leachate (Transfer Station)
(2)Municipal Wastewater
(3)Other Wastewater Streams

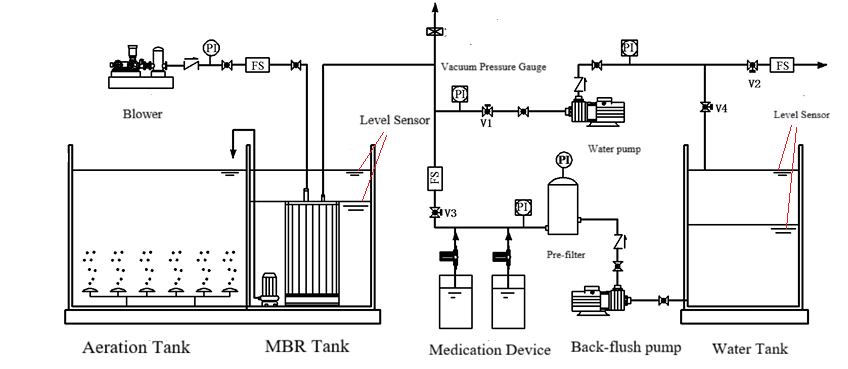

Process Flow：
Advantages:
(1)Excellent Effluent Quality: Clear output, key indicators (COD, Ammonia Nitrogen, Suspended Solids) can meet discharge or reuse standards.
(2)Compact Footprint: Replaces traditional secondary clarifiers; high sludge concentration allows for smaller reactor volume.
(3)Reduced Sludge Production: Long sludge age reduces excess sludge by 30%-50% compared to conventional processes.
(4)High Automation Level: Easy to achieve full automatic control and remote monitoring.
(5)Modular Design: Facilitates capacity expansion, transportation, and installation.

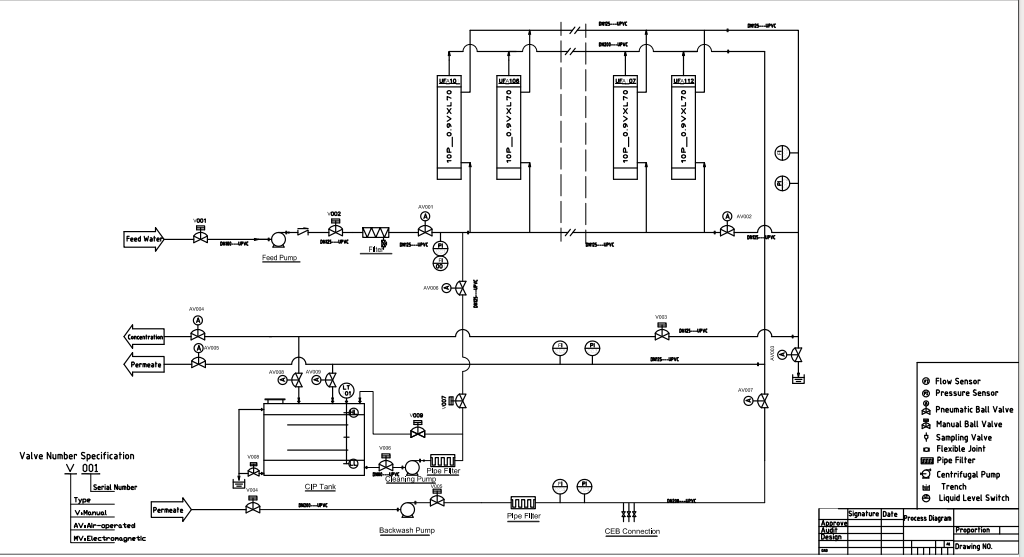

PID
Equipment Specifications
|
Product Model |
Treatment Capacity (tons/day) |
Main Dimensions（mm) |
Membr-ane Module Model |
Number of Membrane Modules |
Equalization Tank Volume（m3) |
||
|
Length |
Width |
Height |
|||||
|
TRI-MBR-10 |
10 |
4500 |
2200 |
2400 |
THF-MBR-Ⅰ |
4 |
8 |
|
TRI-MBR-15 |
15 |
5000 |
2200 |
2400 |
THF-MBR-Ⅱ |
4 |
10 |
|
TRI-MBR-20 |
20 |
5500 |
2200 |
2400 |
THF-MBR-Ⅲ |
4 |
12 |
|
TRI-MBR-25 |
25 |
6000 |
2200 |
2400 |
THF-MBR-Ⅳ |
4 |
16 |
|
TRI-MBR-30 |
30 |
6500 |
2200 |
2400 |
THF-MBR-Ⅴ |
4 |
20 |
|
TRI-MBR-60 |
60 |
8000 |
2200 |
2400 |
THF-MBR-Ⅴ |
8 |
26 |

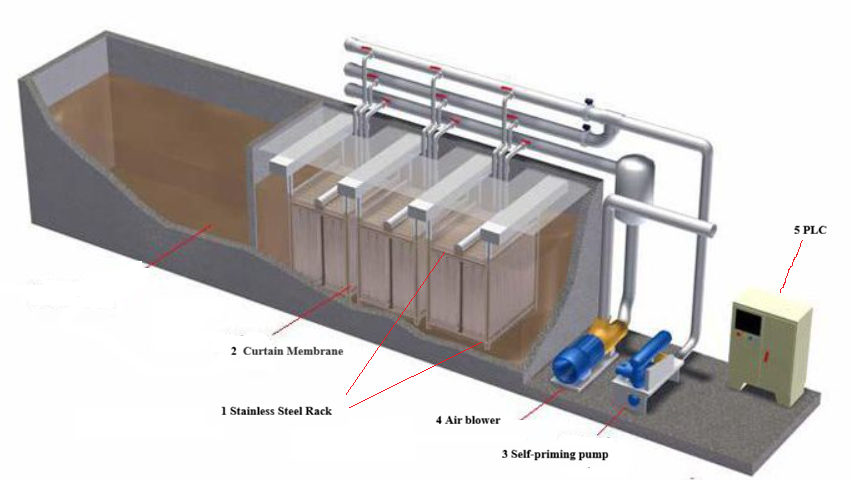

List Package
|
Item |
Name |
|
1 |
Stainless Steel Rack |
|
2 |
Curtain Membrane |
|
3 |
Self-priming pump |
|
4 |
Air blower |
|
5 |
PLC |
|
6 |
Valve |
|
7 |
Pipe |
|
8 |
meter |
|
9 |
Flowmeter |
|
10 |
Design Drawings |
|
11 |
Installation Guide |
|
12 |
Operation & Maintenance Manual |
|
13 |
Certificate of Conformance |
|
14 |
Warranty Certificate |
