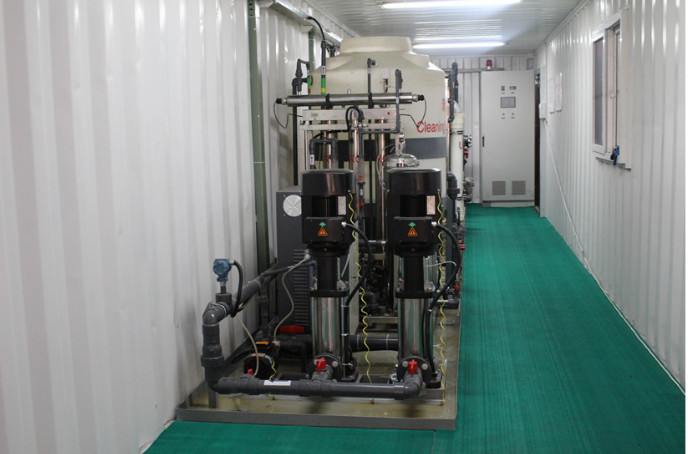

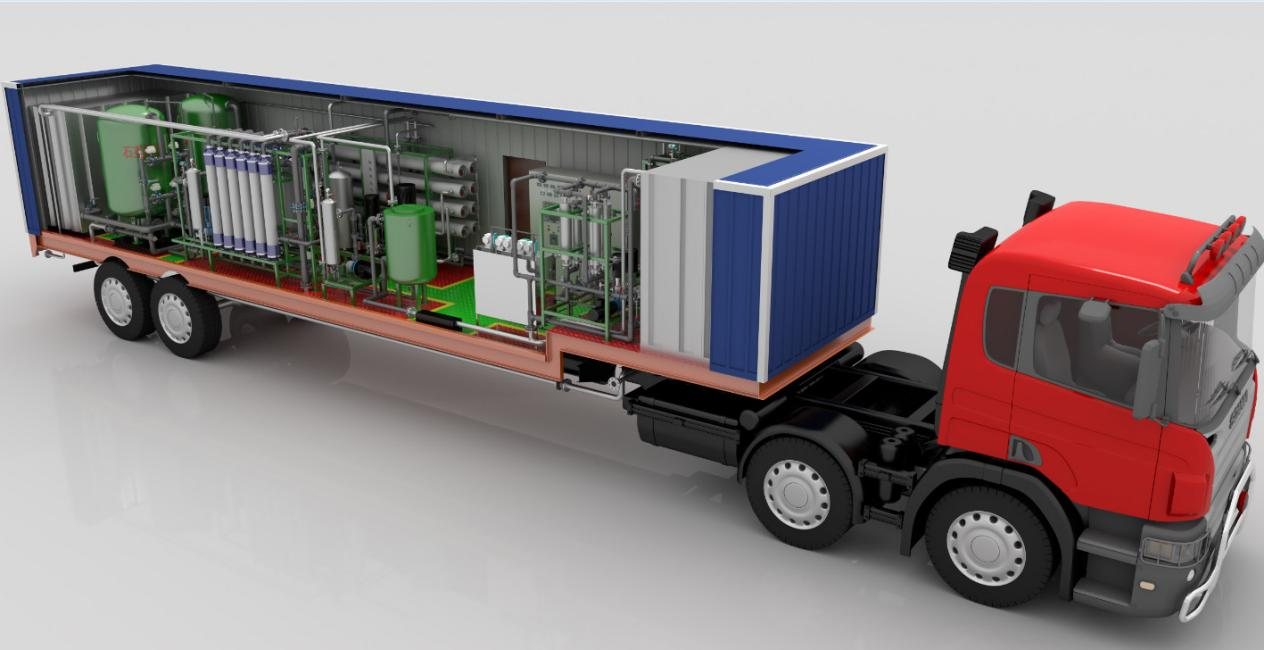

Container type seawater desalination machine is designed, manufactured by our company for customer to produce drinking water from seawater.
Apllication Fields
(1) Marine engineering
(2) Power plant
(3)Oil field, petrochemical
(4) Processing enterprises
(5)Public energy units
(6) Industry
(7)Municipal city drinking water plant
Process Flow：
Seawater → Lifting pump → Flocculant sediment tank → Raw water booster pump → Quartz sand filter → Activated carbon filter → Security filter → Precision filter → High pressure pump → RO system → EDI system → Production water tank → water distribution pump
Advantages:
1.Highly integrated and space-saving
2.Convenient for transportation and installation
3.Highly adaptable
4.High efficiency of operation and maintenance management

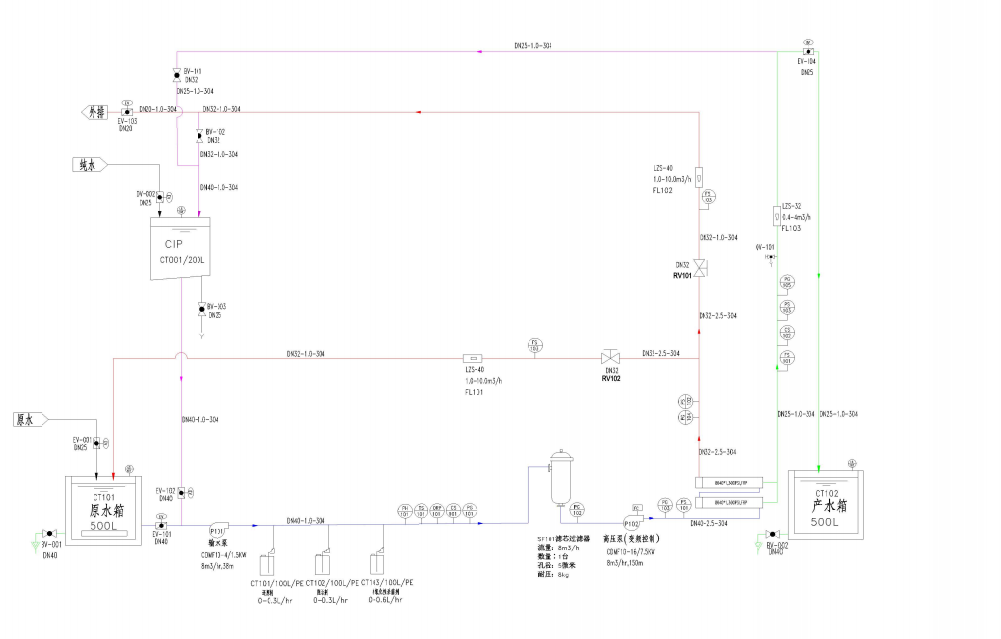

PID
Technical Data:
Capacity: 5m3/hr
Container: 40’’
Power consumption: 25kw.h
Equipment Specifications
|
Model
|
Production water (t/d)
|
Working Pressure (MPa)
|
Inlet water temperature (°C)
|
Recovery rate (%)
|
Dimension (L×W×H (mm))
|
|---|---|---|---|---|---|
|
JTSWRO-10
|
10
|
4-6
|
5-45
|
30
|
1900×550×1900
|
|
JTSWRO-25
|
25
|
4-6
|
5-45
|
40
|
2000×750×1900
|
|
JTSWRO-50
|
50
|
4-6
|
5-45
|
40
|
3250×900×2100
|
|
JTSWRO-100
|
100
|
4-6
|
5-45
|
40
|
5000×1500×2200
|
|
JTSWRO-120
|
120
|
4-6
|
5-45
|
40
|
6000×1650×2200
|
|
JTSWRO-250
|
250
|
4-6
|
5-45
|
40
|
9500×1650×2700
|
|
JTSWRO-300
|
300
|
4-6
|
5-45
|
40
|
10000×1700×2700
|
|
JTSWRO-500
|
500
|
4-6
|
5-45
|
40
|
14000×1800×3000
|
|
JTSWRO-600
|
600
|
4-6
|
5-45
|
40
|
14000×2000×3500
|
|
JTSWRO-1000
|
1000
|
4-6
|
5-45
|
40
|
17000×2500×3500
|
List Package
(1) RO membrane： DOW, Hydraunautics, GE
(2) Vessel：ROPV or First Line, FRP material
(3) HP pump：Danfoss super duplex steel
(4) Energy recovery unit：Danfoss super duplex steel or ERI
(5) Frame：carbon steel with epoxy primer paint, middle layer paint, and polyurethane surface finishing paint 250μm
(6) Pipe：Duplex steel pipe or stainless steel pipe and high pressure rubber pipe for high pressure side, UPVC pipe for low pressure side.
(7) Electrical： PLC of Siemens or ABB , electrical elements from Schneider.
