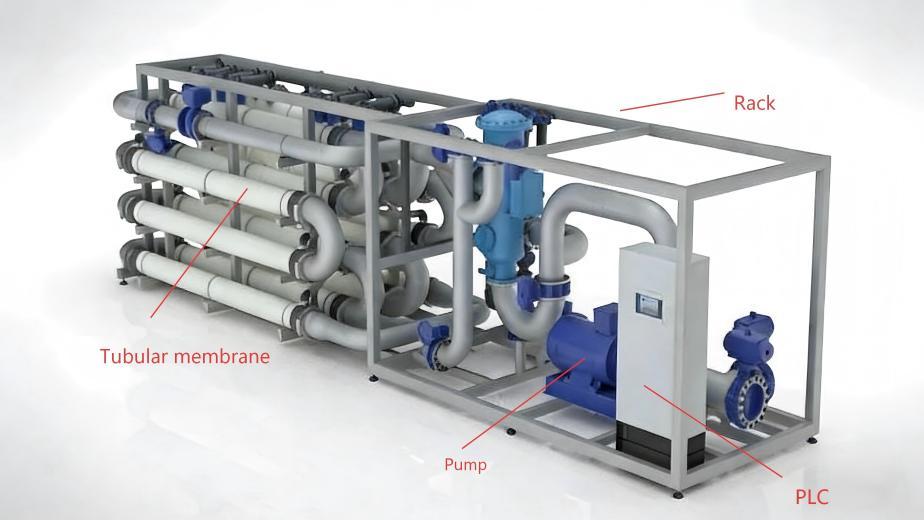

MBR tubular UF membrane equipment is a specialized configuration specifically designed for the treatment of high-concentration wastewater streams, such as landfill leachate. This design facilitates highly efficient solid-liquid separation, enabling the direct production of high-quality permeate. The equipment is characterized by high integration, a compact footprint, and strong resistance to hydraulic and organic shock loads. It operates autonomously with a high level of system automation, thereby minimizing labor requirements and operational costs.
Apllication Fields
（1）Landfill Leachate
（2）Food Wastewater
（3）Other Wastewater

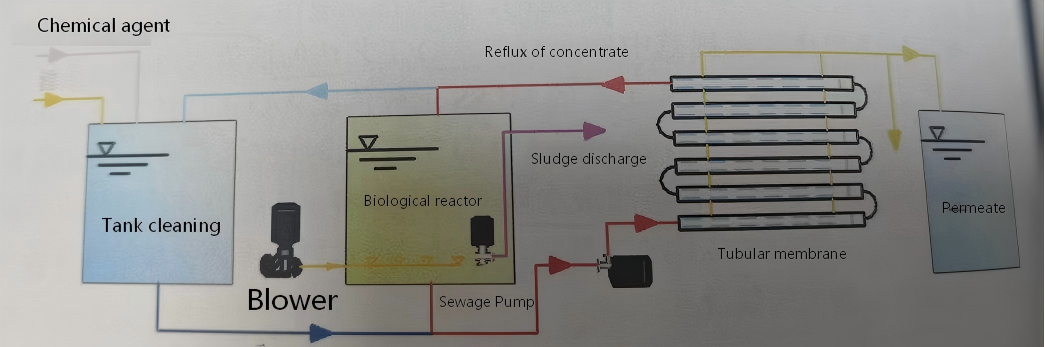

Process Flow：
Advantages:
(1)Standard Design (PID);
(2)Standard List Components (Standard Manufacturing, High-Quality Products, Supply Chain Assurance);
(3)Standard Control Program;
(4)On-Site Installation and Commissioning Guidance (Provision of Operation Manual, Installation Video);
(5)Lifetime After-Sales Maintenance (Over 1000 Overseas Equipment Cases and Service Points);
(6)Modular and Integrated Unit, Customizable Production Offered.

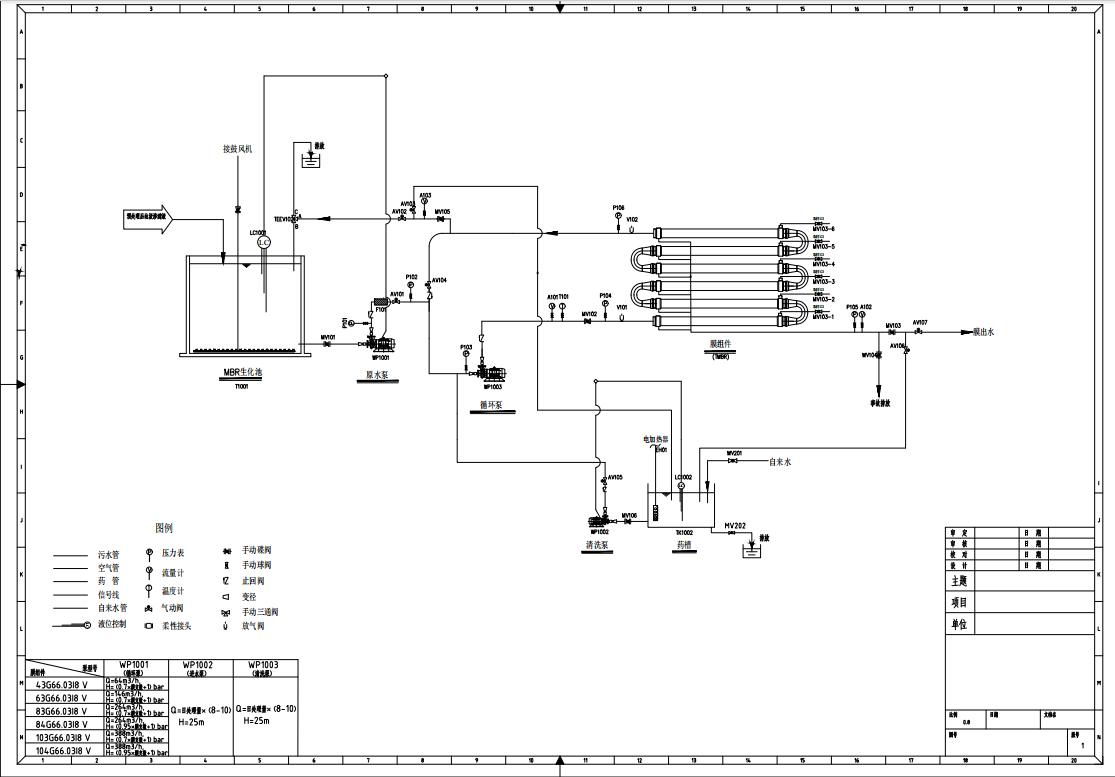

PID
Equipment Specifications
|
Tubular membrane Equipment Unit |
|||||
|
Model |
Capacity (m³/day) |

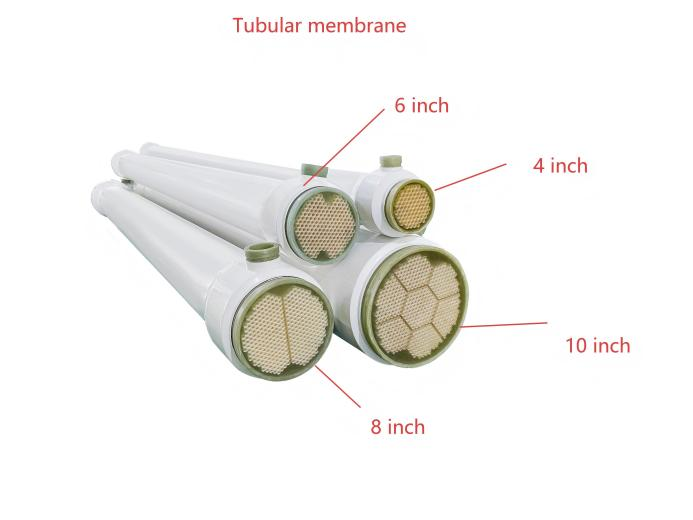

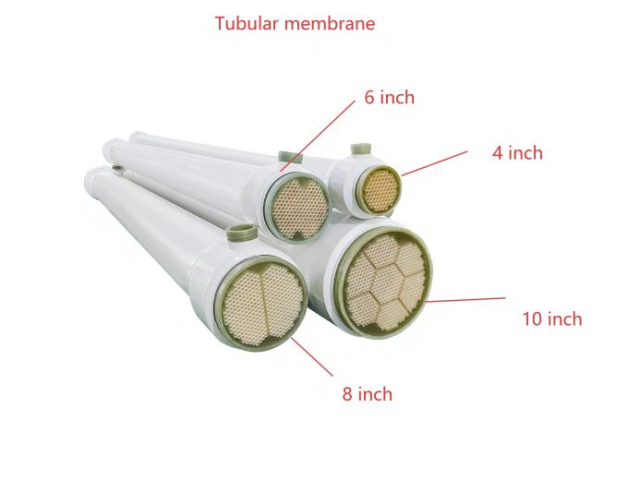

Tubular membrane |
Footprint (Length×Width×Height) |
Installed Power (KW) |
|
|
Model |
Number |
||||
|
TMBR-50 |
50 |
4inch |
5 pcs |
6m*1m*3m |
33.5 |
|
TMBR-100 |
100 |
6inch |
5 pcs |
6m*1m*3m |
44.5 |
|
TMBR-200 |
200 |
8inch |
5 pcs |
6m*1m*3m |
66 |
|
TMBR-300 |
350 |
10inch |
5 pcs |
6m*1m*3m |
112 |
List Package
|
Item |
Name |
Item |
Name |
|
1 |
Tubular membrane |
8 |
meter |
|
2 |
Rack |
9 |
Design Drawings |
|
3 |
Pump |
10 |
Installation Guide |
|
4 |
PLC |
11 |
Operation & Maintenance Manual |
|
5 |
Pipe |
12 |
Certificate of Conformance |
|
6 |
Flowmeter |
2 |
Warranty Certificate |
|
7 |
Valve |
|
